THE STORY

After seeing Theo Jansen mechanism on YouTube I wanted to do my own walking machine. In fact it was an old dream that dates back to the time I was 13 years old when I saw the Empire Strikes Back. That's why I wanted to do a four legs walking machine with a synchronisation mechanism for the legs.

My model never walked, it has no motor, so I made this step by step animation to show the synchronisation mechanism and posted it on YouTube in may 2008.

You can contact me here : studerdom@bluewin.ch




Walking Machine animated gif
Wooden Gears
Walking Machine Walking Machine Walking Machine Walking Machine Walking Machine

Gears

HTML5 Gears

PDF to download

Dimensions

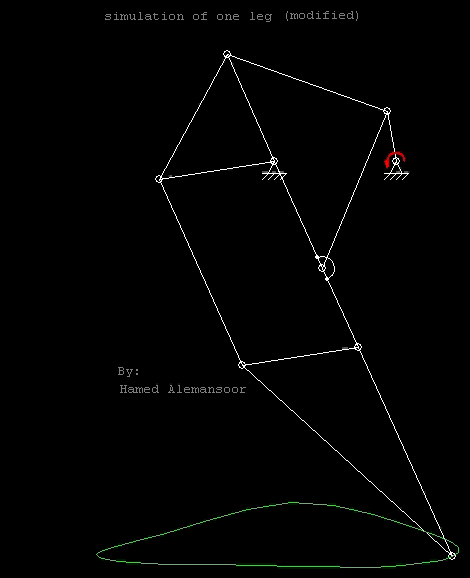

Leg Simulation
by Mr Hamed
Alemansoor

Possible modifications

Gears gif

NOTE À L'INTENTION DE CEUX QUI SOUHAITENT CONSTRUIRE LEUR PROPRE MODÈLE

Bonjour,

NOUVEAU !! un pdf de 7 pages avec des plans. Je ne garantis rien, il s'agit des plans à partir desquels je vais tâcher de peaufiner mon modèle, sinon il y a sur ces pages presque toutes les données importantes, pour le reste il faut se débrouiller.

Faites quand même attention à ce que le centre de gravité du marcheur soit sur l'axe central (voir un peu vers l'avant).

La façon dont sont disposés les engrenages détermine l'ordre dans lequel se passent les choses (c'est un programme en quelque sorte), il faut que la roue dentée du côté gauche et celle du côté droit soient tournées à 180° l'une de l'autre.

Des pièces de la patte se touchaient, j'en ai alors dessiné une autre afin que cela ne se produise plus (elle est dans les "possible modifications"), et je l'ai également allongée un peu afin que le modèle ait l'air moins pataud.

Pensez à mettre une vidéo sur YouTube et envoyez moi le lien.


Bon travail !

Dominique Studer



NOTE FOR THOSE WHO WISH TO BUILD THEIR OWN MODEL

Hello,

NEW !! A seven pages blueprints pdf. There is no guaranty at all, this is where I start hoping to make a better model. all important data are on this page, for the rest you have to manage .

Make still careful that the walker 's center of gravity is on the central axis (and also slightly forward) .

The way gears are arranged determines the order in which things are going ( it's a program in some way ) it is necessary that the toothed wheel of the left and the right side are oriented 180 ° from each other .

Parts of the leg came in contact , I then drew another so that it does not happen again (it is in the "possible modifications" ) , and I also extended it a little so that the model has a less clumsy appearance.

Remember to put a video on YouTube and send me the link.


Good work !

Dominique Studer

OTHER 4 LEGS WALKING MACHINES



December 2008  -   LAUFMASCHINE - A German walker using the same leg synchronisation mechanism.
................................................................................................................................... Return to top




木犬  MOKKEN ( Wooden Dog ) - A Japanese walker made by Mr. Murayama Yuki.

Mr Yuki Murayama, student of Tokyo institute of technology sent me some pictures and movies fom his walker "Mokken".

It has one motor, it uses Geneva stop mechanism and Chebyshev linkage.

Wooden Dog



Geneva Stop

click for an animated version

................................................................................................................................... Return to top




June 2010  -   WALKING MACHINE GASTER und FRANK - Another german walker using the same leg synchronisation mechanism.
................................................................................................................................... Return to top

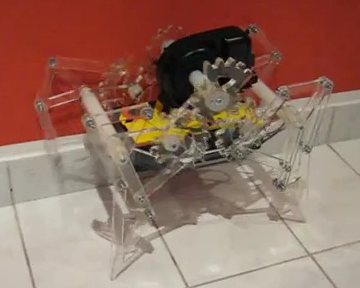

September 2010  -   WALKING ROBOT 2 - with gears outside
Dominique,

Here's a link to my walking robot based on your design. I incorporated your modifications (moving the gears to the outside, etc.) and they work fine. It's laser cut from 3mm acrylic.

Dave West

................................................................................................................................... Return to top




December 2010  -   Theo Jansen Walking Machine - Visoka Tehnicka Skola Bjelovar
A very nice model with translucid gears from Croatia.

I found this video on YouTube.

................................................................................................................................... Return to top




March 2013  -   ZON   -  Robot Marcheur du groupe L22 de l'IUT GMP Jean Monnet à Saint Etienne
A team of french students made this walker for a contest in 2013

I found this video on YouTube.

................................................................................................................................... Return to top




May 2014  -   3D PRINTED Walking Machine   -  with gears outside
Hi there,

I came across your webpage about your 4 leg walking machine some time ago and was very impressed with the clever mechanism. I remembered about it when I finished building my 3D printer and thought it would make a good first project for it. I attach a photo and video which might interest you. I put the gears on the outside of the frame as you suggested, which makes the build much simpler. The information that you provided on your webpage was very clear and most useful, thank you!

Kind regards

Dougal Laidlaw

click to enlarge





3D PRINTER FILES

Dougal kindely provided me with the files to print his walker :
3D_PRINTED_WALKER.zip (1.4 MB)

................................................................................................................................... Return to top




August 2014  -   QUAD-WALKER - with modified legs
A very nice model with modified legs.

I found this video on YouTube (this video is no longer available).

................................................................................................................................... Return to top




September 2014  -   STRAATBEEST   -  with non circular gears
" Dear Dominique,

You have a nice website with things that are very interesting.
What do you think of:
http://youtu.be/IDok0M5is9Q

Next step is build one with a motor.

kind regards,

Ad Lakerveld "


Other interesting videos on Youtube:
First steps.
Walking linkage with non-circulair gears.
Theo Jansen mechanism, version Ad Lakerveld

................................................................................................................................... Return to top




June 2015  -   MECHANICAL HORSE
" Dear

I built a mechanical horse based on your idea.

Thanks.

Jacob "

click to enlarge

............................................................................................................... Return to top




July 2016  -   Four-Legs Walking-Machine 3D Model

click to enlarge


................................................................................................................................... Return to top




April 2017  -   Laser cut and 3D printed Walker
Hi! I love what you did with Theo Jansen’s mechanism, especially making it a 4 legged walker with the changing gear ratios. I took your design and made it into something 3d printable, and followed your advice for having it driven by a DC motor. Man, getting the tolerances and gearing right with 3d printing was a pain. I also decided to use cardstock that was cut out using a silhouette paper cutter for the ‘knees’ and ‘feet’.

It’s powered by a single hobby DC motor and 3 AAA batteries. I’ll send more info (including the files) soon, once I write up the instructions for a class I’m going to have regarding it.

Thanks for your great site!

John Olthoff



click thumbs to enlarge





August 2019 - News !

I'm very happy, he just sent me a model to build.
I will add pictures and make videos.

................................................................................................................................... Return to top




July 2017  -   4 leg walker - 4 bacaklı yürüyen robot - a CNC cut wooden walker , with modified legs.

click to enlarge

More images on his Instagram account


................................................................................................................................... Return to top




September 2019  -   Sagaz Perenne - Robot con el Mecanismo de Theo Jansen  - Four Legs Walking Machine Model

Nice Youtube video showing the model construction and two links to download plans in the description.

click to enlarge


................................................................................................................................... Return to top




LINKS

I did some research on the web and find many intersting links :

- Theo Jansen Website : www.strandbeest.com

- A.J. Ingram, "A new type of mechanical walking machine", Rand Afrikaans University, 2004.
The pdf can be downloaded here

- A.J. Ingram, Numerical kinematic and kinetic analysis of a new class of twelve bar linkage for walking machines : here.

- Chih-Ching Hung, "On the Mechanism Design of A Hybrid 8-link Type Walking Horse", Taiwan, 2001.
The pdf can be downloaded here.

- Kao-Chu Chiang, "A Reconstruction Design of Lu-Ban's Wooden Horse Carriage with 10-bar Linkages", National Cheng Ku University, Taiwan, 2005.
The pdf can be downloaded here.

- Theo Jansen legs dimensions can be found here or here.

- A simulator where you can test your own proportions for the linkages is on mekanizmalar.
Just change the red and yellow bars to 129.72 and 279.11 .

-A very useful tool : Gear Template Generator.

- Theo Jansen creations, made with LEGO on TechnicbrICKs

- TE+ND Rover, it uses the mechanism with 8 legs to reduce the weight per leg : tendrover.com

- Ugears Horse, because the gears are small they had to reduce the number of teeth, but they work the same.
You can see them at 2:41:23 youtu.be/kip8OtXc1ck?t=9680.

- My Youtube Videos : 4 Legs Walking Machine and Variable Speed Gears.
